Adding Route Details

This option allows you to add route information in the route section of the manifest in the SaudiEDI application.

To add route details

1.      Open the Route Details page.

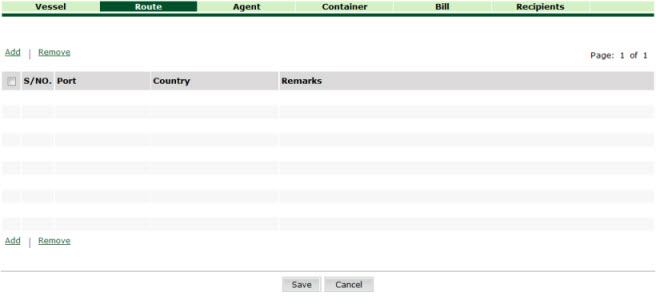

Create Route Page

2.      Click Add, route details page is displayed.

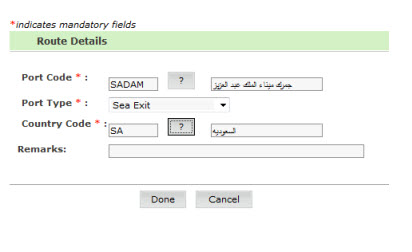

Route Details page

3.      Enter information in the Route Details fields.

Field	Description
Port Code	Enter the port code using the selection icon.
Port Type	Select the port type from the drop down list (e.g., Sea Exit, Land Exit, etc)
Country Code	Enter the country code using the selection icon.

4.      Click Done button. The Route Details page is added to the list.

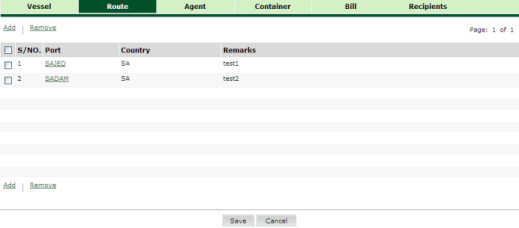

Route Details added page

Validation Rules for Route

1.      Country code must be a valid ISO-3166 code.

2.      Port code must be a valid UNLOCODE.

3.      Port type must be listed in Manifest Message Specification.
